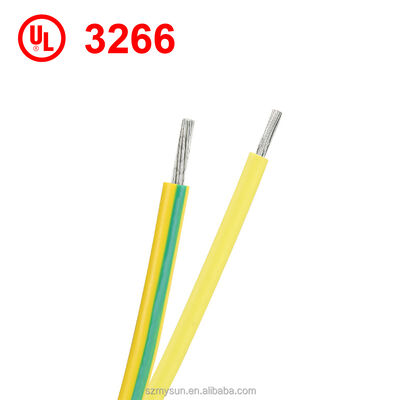

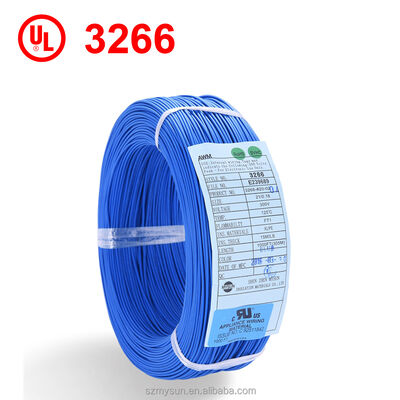

UL3266 XLPE Hook Up Wire with Tinned Copper Conductor 125C Rated Temperature and 300V Rated Voltage
商品の詳細
| 導体材質 | 錫メッキ銅 | 直径のオプション | 10AWG、12AWG、14AWG、16AWG、18AWG、20AWG、22AWG、24AWG、0.50mm2、0.75mm2、1mm2、1.5mm2 |
|---|---|---|---|
| 断熱材 | XLPE | 定格電圧 | 300V |
| 導体の種類 | 固体 | 形 | ラウンド |
| 最高温度 | 125C | サイズ範囲 | 32〜10AWG |
| 利用可能な色 | 赤、青、白、黄、緑、茶色、黒、灰色 | 導体構造 | 30/0.18 |
| 公称厚 | 0.39mm | 最大導体抵抗 | 3.55Ω/KM(10AWG) |
| ユニットの長さ | 305メートル/1000フィート | 断熱材の厚さ | 0.39mm |
| 全体的な直径 | 4.05mm (10AWG) | ||
| ハイライト | Tinned Copper XLPE Wire,125C Rated Temperature Hook Up Wire,300V Rated Voltage UL3266 Wire |
||
製品の説明

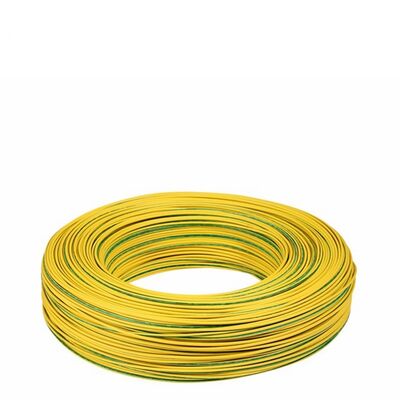

UL3266 Yellow Green 0.75mm² 30/0.18 300V 125°C Tinned Copper XLPE Wire
Premium UL3266 certified wire designed for Battery Energy Storage Systems (BESS) and electrical applications requiring high temperature resistance and reliable performance.
Product Overview
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 32 | 7/0.08 | 0.24 | 0.39 | 1.02 | 563 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 0.39 | 1.08 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.39 | 1.16 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.39 | 1.26 | 150 | 610/2000 |
| 24 | 11/0.16 | 0.60 | 0.39 | 1.38 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.39 | 1.54 | 59.4 | 305/1000 |
| 20 | 21/0.18 | 0.94 | 0.39 | 1.72 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.18 | 0.39 | 1.96 | 23.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.39 | 2.28 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.39 | 2.77 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.39 | 3.15 | 5.64 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.39 | 4.05 | 3.55 | 305/1000 |
| Customized size according to your needs | ||||||
