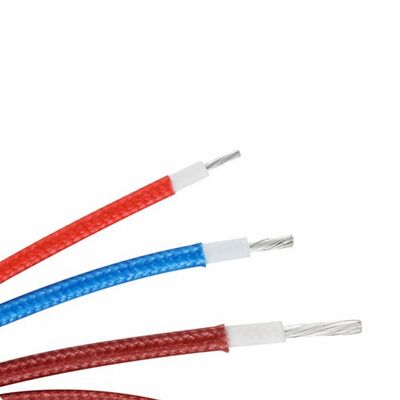

UL3075 10AWG Silicone Fiberglass Braided Wire with 600V Rated Voltage and 200C Temperature Rating for Industrial Heaters
商品の詳細
| 導体材質 | 銅 | 線径 | 10AWG |
|---|---|---|---|
| 断熱材 | ゴム | 定格電圧 | 600V |
| 導体の種類 | 座礁 | 最高温度 | 200c |
| 断熱タイプ | シリコーンゴム | 導体構造 | 19/0.6135/0.457/0.98 |
| 導体の直径 | 3.07mm | 断熱材の厚さ | 1.45mm |
| 全体的な直径 | 5.97mm | 最大導体抵抗 | 3.55Ω/KM |
| ユニットの長さ | 305メートル/ロール | 指揮者構成 | 錫メッキ銅 |
| ワイヤーの種類 | 絶縁 | ||
| ハイライト | 600V Rated Voltage Fiberglass Braided Wire,200C Temperature Rating Silicone Insulated Wire,10AWG Diameter Industrial Heater Wire |
||
製品の説明

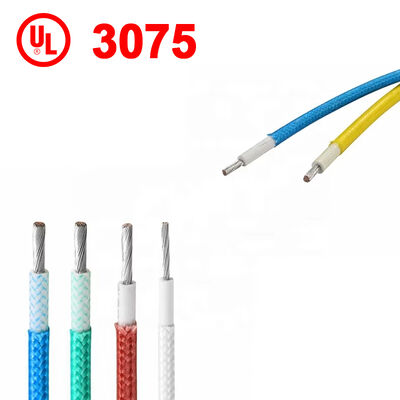

UL3075 10AWG Silicone Fiberglass Braided Wire
600V 200°C Flexible Industrial Warm Air Blower Wire
Seeking Country Agents for a Win-Win Partnership
Product Specifications
| UL3075 Specification | Conductor | Insulation | Max Conductor Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
| 10 | 19/0.6135/0.457/0.98 | 3.07 | 1.45 | 5.97 |
| 3.55 | 305/1000 | ||||
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 27 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
