UL3071 600V Rated Voltage 200°C High Temperature Resistant Flexible Silicone Insulated Fiberglass Braided Heater Element Wire
商品の詳細
| 導体材質 | 銅 | 直径のオプション | 13AWG、14AWG、16AWG、18AWG |
|---|---|---|---|
| 断熱材 | シリコーン | 定格電圧 | 600V |
| 導体の種類 | 座礁 | 最高温度 | 200c |
| 断熱タイプ | シリコーンゴム | 導体構造 | 錫メッキ銅 |
| ユニットの長さ | 305メートル/ロール | 導体抵抗 | 23.2Ω/KM (18AWG)、14.6Ω/KM (16AWG)、8.96Ω/KM (14AWG)、6.97Ω/KM (13AWG) |
| 導体の直径 | 1.19mm (18AWG)、1.49mm (16AWG)、1.87mm (14AWG)、2.07mm (13AWG) | 断熱材の厚さ | 0.93mm |
| 全体的な直径 | 3.05mm (18AWG)、3.35mm (16AWG)、3.73mm (14AWG)、3.93mm (13AWG) | ワイヤーの種類 | 絶縁 |
| 標準 | ul3071 | ||
| ハイライト | 600V Rated Voltage Fiberglass Braided Wire,200°C High Temperature Resistant Silicone Insulated Wire,Flexible Silicone Insulated Heater Element Wire |
||
製品の説明

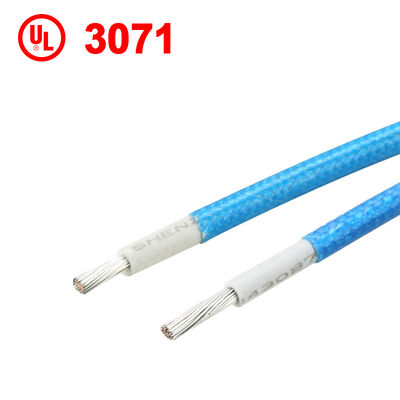

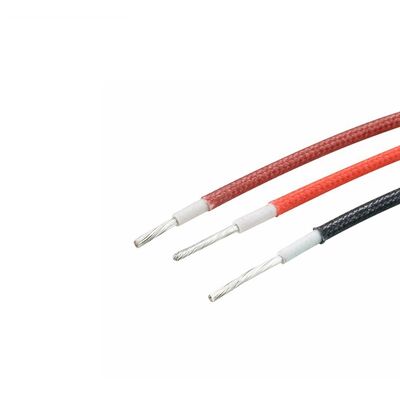

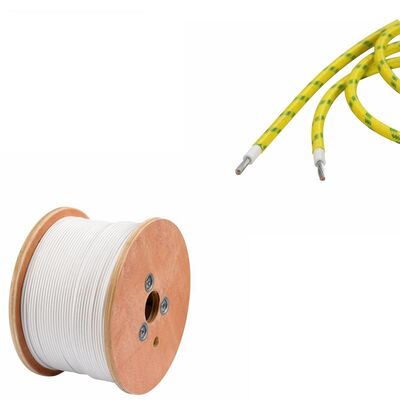

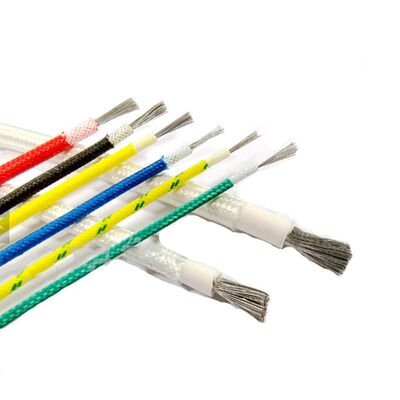

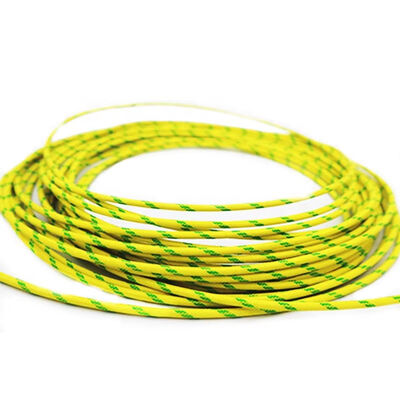

UL3071 High Temperature Resistant Flexible Silicone Insulated Fiberglass Braided Heater Element Wire
Seeking Country Agents for a Win-Win Partnership
Product Overview
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.93 | 3.35 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.93 | 3.73 | 8.96 | 305/1000 |
| 13 | 50/0.254 | 2.07 | 0.93 | 3.93 | 6.97 | 305/1000 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
