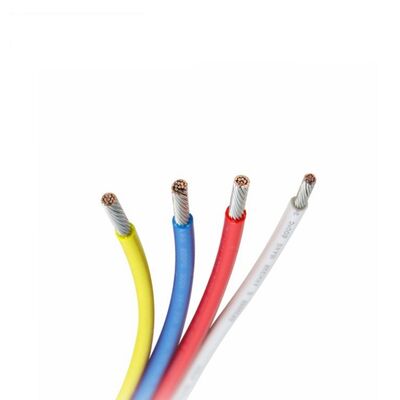

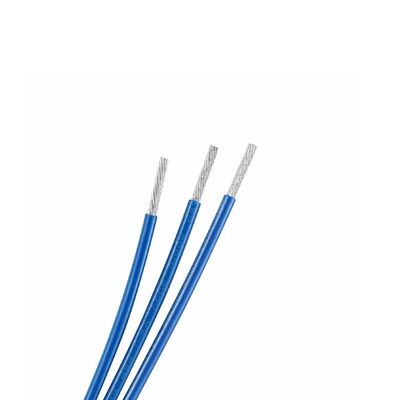

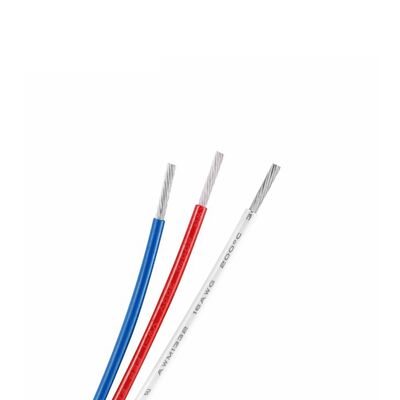

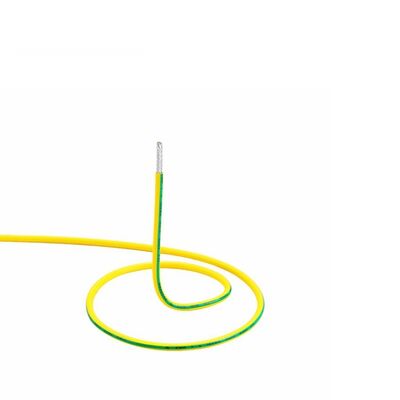

High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 導体材質 | 缶詰の銅 | 直径 | 0.051mm2～16.00mm2 |
|---|---|---|---|
| 断熱材 | FEP | 定格電圧 | 300 V |
| 導体の種類 | 固体 | 形 | ラウンド |
| 温度定格 | 150°C | タイプ | 絶縁されています |
| ユニットの長さ | 305/1000 m/ft | 最大導体抵抗 | 381Ω/KM～1.17Ω/KM |
| 公称厚 | 0.230mm～0.510mm | 断熱材の直径 | 0.80mm～6.65mm |
| 工事 | 7/0.10～133/0.393 | 電圧 | 300V |
| 色 | すべての色 | ||
| ハイライト | High Temperature FEP Wire,Tinned Nickel Plated Copper FEP Wire,CQC1111.31-2020/GB/T38296-2019 Standard FEP Wire |
||
製品の説明
FEP Wire 300V 150°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator
Specification
| CQC E-150/TX/FEP Wire | UL1330 | Max.Cond Resistance (Ω/KM) | Unit length (M)(Ft) | |||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No.mm) | Diameter (mm) | Nominal thickness (mm) | Diameter (mm) | ||
| 0.051 | 7/0.10 | 0.30 | 0.230 | 0.80 | 381 | 610/2000 |
| 0.08 | 7/0.127 | 0.38 | 0.230 | 0.85 | 239 | 610/2000 |
| 0.13 | 7/0.16 | 0.48 | 0.230 | 0.95 | 150 | 305/1000 |
| 0.21 | 19/0.12 | 0.60 | 0.230 | 1.10 | 94.2 | 305/1000 |
| 0.32 | 19/0.15 | 0.78 | 0.230 | 1.20 | 59.4 | 305/1000 |
| 0.40 | 19/0.17 | 0.85 | 0.230 | 1.35 | 46.6 | 305/1000 |
| 0.52 | 19/0.19 | 0.96 | 0.230 | 1.50 | 37.4 | 305/1000 |
| 0.75 | 19/0.225 | 1.12 | 0.230 | 1.60 | 24.8 | 305/1000 |
| 0.82 | 19/0.235 | 1.17 | 0.380 | 1.95 | 23.5 | 305/1000 |
| 1.00 | 19/0.26 | 1.35 | 0.380 | 2.15 | 18.7 | 305/1000 |
| 1.31 | 19/0.30 | 1.52 | 0.380 | 2.30 | 14.7 | 305/1000 |
| 1.50 | 19/0.32 | 1.60 | 0.380 | 2.40 | 12.5 | 305/1000 |
| 2.08 | 19/0.375 | 1.89 | 0.380 | 2.70 | 9.22 | 100/328 |
| 2.50 | 19/0.41 | 2.08 | 0.380 | 2.90 | 7.47 | 100/328 |
| 3.31 | 19/0.475 | 2.39 | 0.380 | 3.20 | 5.75 | 100/328 |
| 4.00 | 19/0.52 | 2.70 | 0.380 | 3.50 | 4.68 | 100/328 |
| 5.26 | 19/0.60 | 3.00 | 0.380 | 3.80 | 3.62 | 100/328 |
| 6.00 | 19/0.64 | 3.25 | 0.380 | 4.00 | 3.12 | 100/328 |
| 8.37 | 68/0.40 | 3.90 | 0.510 | 4.95 | 2.23 | 100/328 |
| 10.00 | 37/0.59 | 4.30 | 0.510 | 5.35 | 1.87 | 100/328 |
| 13.30 | 133/0.36 | 5.20 | 0.510 | 6.25 | 1.41 | 100/328 |
| 16.00 | 133/0.393 | 5.60 | 0.510 | 6.65 | 1.17 | 100/328 |
Company Profile
Our Products
Application
Our Overseas Clients
Exhibition
Certifications
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
