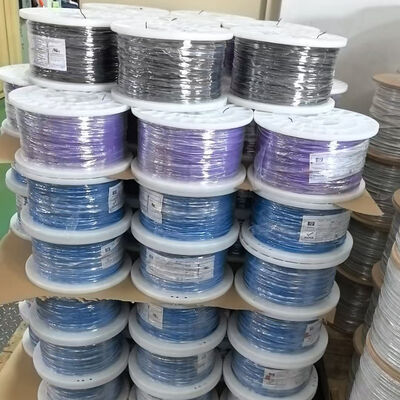

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
  • Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
起源の場所 広東省、中国
ブランド名 MYSUN
モデル番号 V048486 CQC20011252316 E(z)-200/TX/FEP
最小注文数量 3050

試供品およびクーポンのための私に連絡しなさい。

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
導体材質 缶詰の銅 直径 0.051mm2、0.08mm2、0.13mm2、0.21mm2、0.32mm2、0.40mm2、0.52mm2、0.75mm2、0.82mm2、1.00mm2、1.31mm2、1.50mm2、2.0
断熱材 FEP 定格電圧 300 V
導体の種類 固体 形 ラウンド
温度範囲 150℃、200℃ タイプ 絶縁されています
ユニットの長さ 305/1000 最大導体抵抗 381Ω/KM、239Ω/KM、150Ω/KM、94.2Ω/KM、59.4Ω/KM、46.6Ω/KM、37.4Ω/KM、24.8Ω/KM、23.5Ω/KM、18.7Ω/KM、14.7 Ω/KM、12.
公称厚 0.230mm、0.380mm、0.510mm 断熱材の直径 0.80mm、0.85mm、0.95mm、1.10mm、1.20mm、1.35mm、1.50mm、1.60mm、1.95mm、2.15mm、2.30mm、2.40mm、2.70mm、2.90mm、3.
導体の直径 0.30mm、0.38mm、0.48mm、0.60mm、0.78mm、0.85mm、0.96mm、1.12mm、1.17mm、1.35mm、1.52mm、1.60mm、1.89mm、2.08mm、2. 工事 7/0.10、7/0.127、7/0.16、19/0.12、19/0.15、19/0.17、19/0.19、19/0.225、19/0.235、19/0.26、19/0.30、19/0.32、 19/
ハイライト

Flame Retardant FEP Wire

,

Nickel Plated Copper FEP Wire

,

UAV Robot Generator Wire
メッセージ
製品の説明
Flame Retardant FEP Wire 300V 200°C Nickel Plated Copper
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 0 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 1
Product Specifications
V048486 CQC20011252316 E(z)-200/TX/FEP Wire UL1330
Conductor Insulation Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 305/1000
2.50 19/0.41 2.08 0.380 2.90 7.47 305/1000
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Contact Us for Best Quote
Company Profile
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 2 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 3 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 4 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 5
Our Products
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 6 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 7
Applications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 8 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 9
Our Overseas Clients
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 10 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 11
Exhibitions
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 12 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 13
Certifications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 14 Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications 15
Frequently Asked Questions
1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?
  • Free sample
  • Competitive price
  • High quality standard
  • Customized service
4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.

Accepted Payment Currency: USD, EUR, CNY.

Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
