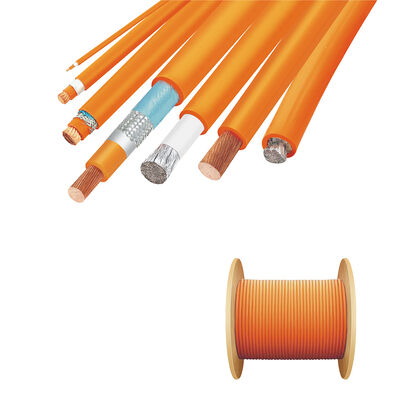

EV 150C XLPE Insulation Battery Cable with 1500V Rating and Tinned Copper Conductor
商品の詳細
| 導体材質 | 錫メッキ銅 | 直径範囲 | 0.2mm2～400mm2 |
|---|---|---|---|
| 断熱材 | XLPE | 定格電圧 | 1500V |
| 導体の種類 | 座礁 | 形 | ラウンド |
| 温度定格 | 150°C | 最大導体抵抗 | 0.09～1.80Ω/KM |
| 断熱材の厚さ | 0.65～1.30mm | 導体の直径 | 4.6～24.0mm |
| 断熱材の直径 | 6.40～28.00mm | ストランドカウント | 319-7644 |
| ストランド径 | 0.127～0.2mm | 定格電圧 | 1500V |
| 断熱タイプ | EV XLPE | ||
| ハイライト | 1500V Battery Cable,XLPE Insulation EV Cable,Tinned Copper Conductor Energy Storage Cable |
||
製品の説明
EV 150C XLPE Wire 1500V 0.2MM² - 240MM² New Energy Cable
Supplies Fortune 500, Top XLPE Cable Supplier In China
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) |
|---|---|---|---|---|---|
| 10.0 | 790/0.127 | 4.6 | ≥0.65 | 6.40 | 1.80 |
| 16.0 | 510/0.2 | 6.0 | ≥0.70 | 8.00 | 1.15 |
| 25.0 | 797/0.2 | 7.5 | ≥0.80 | 10.00 | 0.80 |
| 35.0 | 1115/0.2 | 8.8 | ≥0.90 | 11.50 | 0.60 |
| 50.0 | 1593/0.2 | 10.3 | ≥0.90 | 13.00 | 0.40 |
| 70.0 | 2230/0.2 | 12.0 | ≥1.00 | 15.00 | 0.30 |
| 95.0 | 3026/0.2 | 14.0 | ≥1.00 | 17.00 | 0.20 |
| 120.0 | 3823/0.2 | 16.0 | ≥1.30 | 20.00 | 0.17 |
| 150.0 | 4778/0.2 | 18.0 | ≥1.30 | 22.00 | 0.14 |
| 185.0 | 5893/0.2 | 19.0 | ≥1.30 | 24.00 | 0.11 |
| 240.0 | 7644/0.2 | 24.0 | ≥1.30 | 28.00 | 0.09 |
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us?
- Free Sample
- Competitive Price
- High Quality Standard
- Customized Service
- What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- What Services Can We Provide?
- Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
- Accepted Payment Currency: USD, EUR, CNY
- Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash
