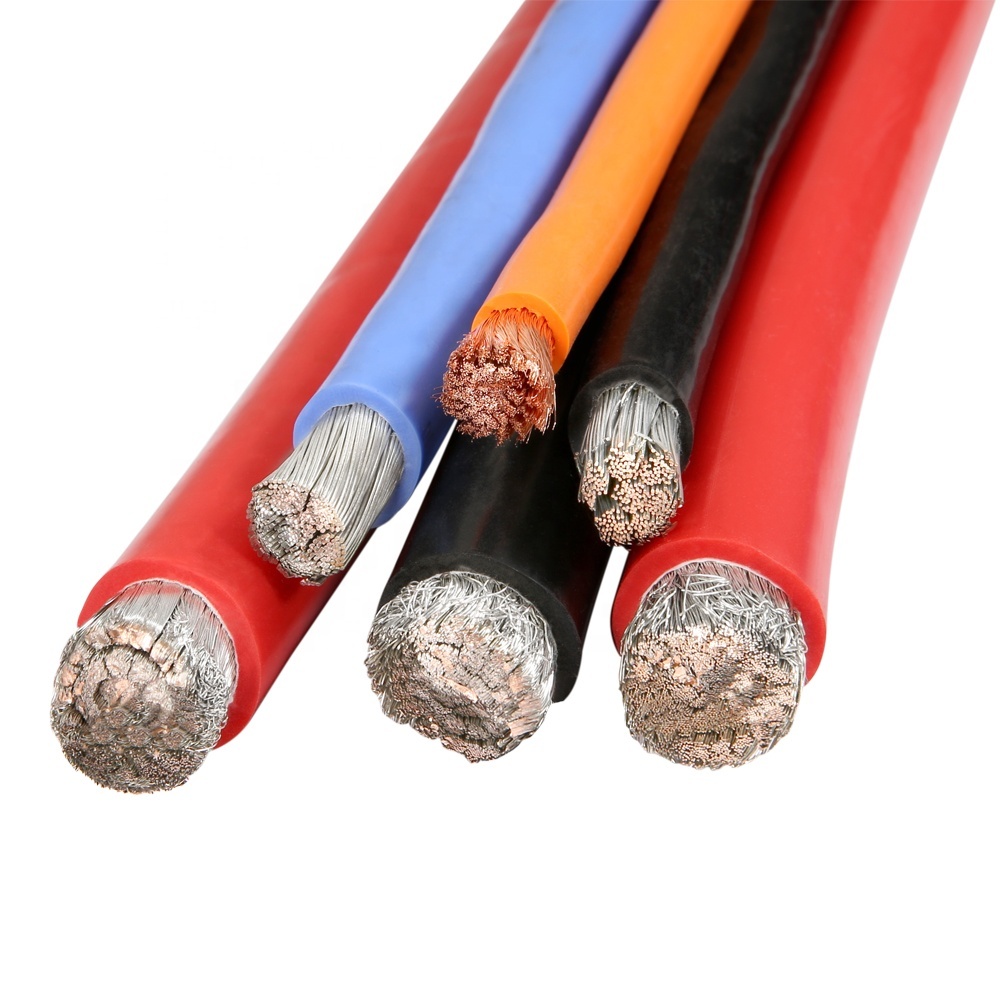

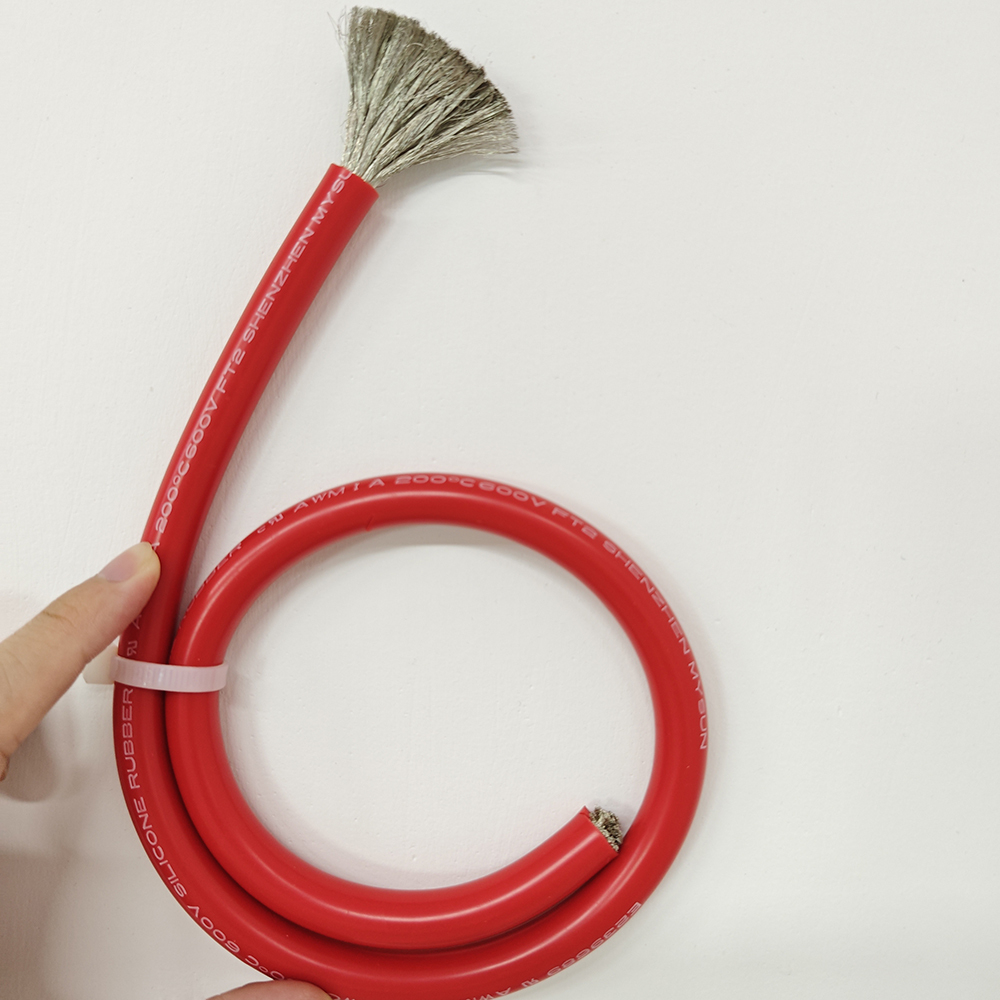

UL3512 3/0AWG Silicone Wire 200C Heat-resistant Tinned Copper Cable
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Temperature rating | 200C | Shape | ROUND |
|---|---|---|---|
| Diameter | 3/0 AWG | Conductor material | Tinned Copper wire |
| Conductor type | tinned copper | Insulation material | Silicone Rubber |
| Rated voltage | 600v | Conductor construction | 16921/0.08 |
| Nominal thickness | 0.78mm | Outer diameter | 16.3±0.7mm |
| Wire gauge | 3/0 AWG | Insulation thickness | 2.03mm |
| Conductor diameter | 12.3±0.8mm | Jacket material | Silicone rubber |
| Color options | Optional | ||
| ハイライト | 3/0AWG silicone wire,heat-resistant tinned copper cable,UL3512 silicone insulated wire |
||
製品の説明
UL3512 3/0AWG Super Soft Silicone Wire 16921/0.08 VW-1 Flexible Heat-resistant Solar Battery Cable
Product Specifications
| Attribute | Value |
|---|---|
| Temperature Rating | 200°C |
| Shape | Round |
| Diameter | 3/0 AWG |
| Type | Insulated |
| Applications | Home appliances, lighting, heaters, motors & generators |
| Conductor Material | Tinned Copper wire |
| Insulation Material | Silicone Rubber |
| Rated Voltage | 600V |
| Standard | UL 758 |
| Color Options | Customizable |
Product Description
Premium silicone rubber wire supplier for Fortune 500 companies and leading manufacturers worldwide.
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
| 3/0 | 16921/0.08 | 12.3±0.8 | 2.03 | 16.3±0.7 |
Key Features
- Super soft and flexible silicone insulation
- High temperature resistance up to 200°C
- Tinned copper conductor for superior conductivity
- VW-1 flame retardant rating
- UL758 certified for safety and reliability
- Wide range of applications in demanding environments
Frequently Asked Questions
Who are we?
We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
What can we provide?
We specialize in high-temperature wires and cables, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cables, and wiring harnesses.
Why choose us?
We offer free samples, competitive pricing, high quality standards, and customized services to meet your specific requirements.
What certifications do we have?
Our products are certified to UL, cUL, VDE, Reach, CE, ROHS, CCC, and CQC standards.
What services do we provide?
We accept various delivery terms (FOB, CIF, EXW, etc.) and payment methods (T/T, L/C, PayPal, etc.) to accommodate global customers.
