UL3512 4/0AWG Silicone Rubber Wire 200C Heat-resistant 600V
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Temperature rating | 200C | Shape | ROUND |
|---|---|---|---|
| Diameter | 4/0AWG | Conductor material | Tinned Copper wire |
| Insulation material | Silicone Rubber | Rated voltage | 600v |
| Conductor type | tinned copper | Conductor size | 21338/0.08 |
| Conductor diameter | 15.2±0.8mm | Insulation thickness | 2.03mm |
| Overall diameter | 20.5±1.0mm | Wire gauge | 4/0AWG |
| Strand count | 21338 | Strand diameter | 0.08mm |
| Jacket material | Silicone rubber | ||
| ハイライト | 4/0AWG silicone rubber wire,heat-resistant silicone insulated wire,600V high-temperature silicone wire |
||
製品の説明
UL3512 4/0AWG Super Soft Silicone Wire 21338/0.08 Heat-resistant Energy Storage Cable
Product Specifications
| Temperature Rating | 200°C |
| Shape | Round |
| Diameter | 4/0AWG |
| Type | Insulated |
| Applications | Home appliances, lighting, heaters, motors & generators |
| Conductor Material | Tinned Copper Wire |
| Insulation Material | Silicone Rubber |
| Rated Voltage | 600V |
| Standard | UL 758 |
| Color Options | Customizable |
Product Description
Premium silicone rubber wire supplier for Fortune 500 companies and industrial applications worldwide.
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|
| 4/0 | 21338/0.08 | 15.2±0.8 | 2.03 | 20.5±1.0 |
| 3/0 | 16921/0.08 | 14.50±0.70 | 2.03 | 18.50±0.60 |
| 2/0 | 13422/0.08 | 12.3±0.8 | 2.03 | 16.3±0.7 |
| 1/0 | 10647/0.08 | 11.0±0.70 | 2.03 | 15.0±0.6 |
| 1 | 8842/0.08 | 10.0±0.6 | 2.03 | 14.0±0.6 |
Applications
Certifications
Frequently Asked Questions
Who are we?
We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
What can we provide?

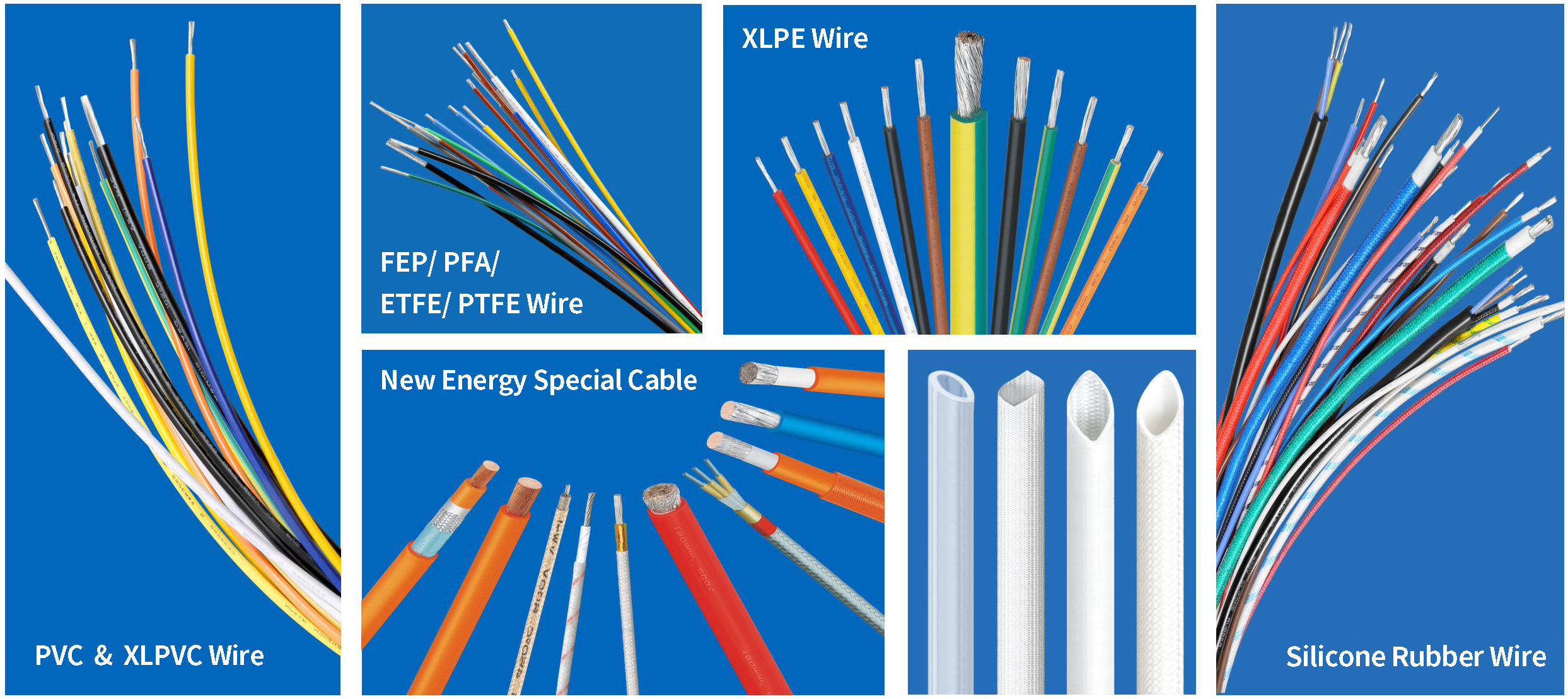

We specialize in high-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
Why choose us?
We offer free samples, competitive pricing, high quality standards, and customized services to meet your specific requirements.
