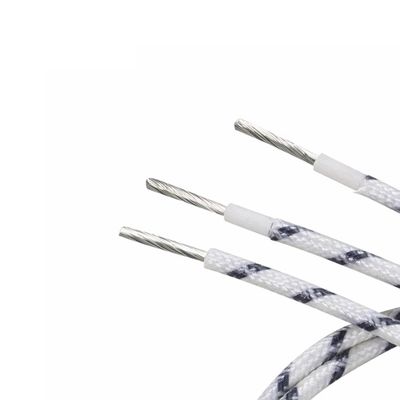

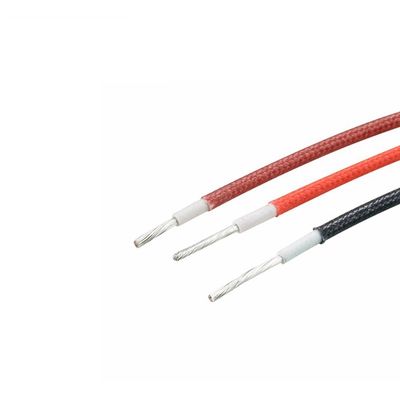

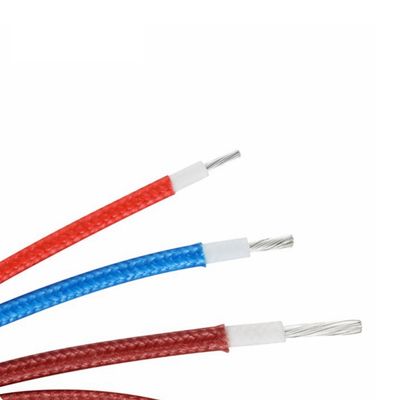

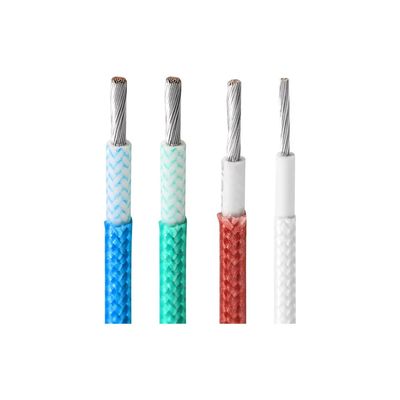

UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
試供品およびクーポンのための私に連絡しなさい。
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 導体材料 | 銅 | 断熱材 | シリコンゴム |
|---|---|---|---|
| 定格電圧 | 300 V | 導体タイプ | 立ち往生 |
| 形 | ラウンド | 最大温度 | 200c |
| 導体の直径 | 0.48-1.49 mm | 断熱の厚さ | 0.60-0.65 mm |
| ワイヤーの直径 | 1.68-2.69 mm | 導体抵抗 | 14.00-143.00Ω/km |
| ユニットの長さ | 305メートル/ロール | AWGサイズ | 16-26 |
| 導体構造 | 7/0.16〜50/0.18 | 導体仕上げ | 缶詰の銅 |
| 断熱タイプ | ゴム | ||
| ハイライト | 300V Silicone Insulated Wire,200C High Temperature Wire,18 AWG Silicone Rubber Insulated Wire |
||
製品の説明
UL3122 Silicone Fiberglass Braided Wire 300V 18 AWG 20 AWG High Temperature Heating Cables
High-quality silicone fiberglass braided wire designed for home appliances and industrial applications requiring high temperature resistance up to 200°C.
Specifications
| Conductor | Insulation | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|
| Size (AWG): 26 Construction: 7/0.16 Diameter: 0.48mm |
Nominal Thickness: 0.60mm Diameter: 1.68mm |
143.00 | 305/1000 |
| Size (AWG): 24 Construction: 7/0.20 Diameter: 0.61mm |
Nominal Thickness: 0.60mm Diameter: 1.81mm |
89.30 | 305/1000 |
| Size (AWG): 22 Construction: 7/0.254 Diameter: 0.77mm |
Nominal Thickness: 0.60mm Diameter: 1.97mm |
56.40 | 305/1000 |
| Size (AWG): 20 Construction: 7/0.31 Diameter: 0.94mm |
Nominal Thickness: 0.60mm Diameter: 2.14mm |
35.20 | 305/1000 |
| Size (AWG): 18 Construction: 7/0.39 Diameter: 1.19mm |
Nominal Thickness: 0.60mm Diameter: 2.39mm |
22.20 | 305/1000 |
Product Features
- Place of Origin: China, Guangdong
- Type: Insulated wire with silicone rubber insulation
- Application: Home appliances, lighting, heaters, motors, generators, industrial power
- Conductor Material: Tinned copper (stranded)
- Color options: Accept customized colors
- Usage: High temperature electric furnace heating
- Rated Voltage: 300V
- Rated Temperature: 200°C
- Package: 305 meter/roll
- Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise specializing in high temperature wires for home appliances, electronic products, lighting, medical units, and communication equipment. Our products meet UL, CUL, VDE and SGS certifications and comply with ISO9001 international standards.

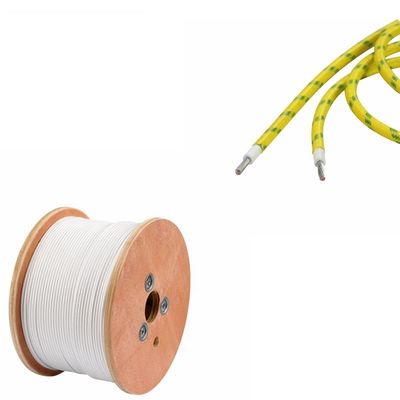

Packing
Applications
Frequently Asked Questions
How can I contact your company?
We are available via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We observe public holidays during May 1-3, October 1-7, and Chinese New Year.
Do you provide free samples?
Yes, we provide free samples for testing, but buyers must cover all shipping costs.
What are your payment terms?
We accept T/T, L/C, D/A, D/P, Western Union, MoneyGram, and Paypal.
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
