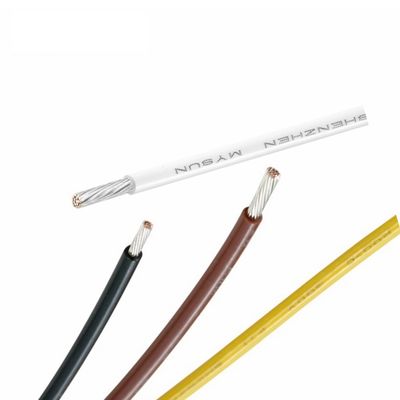

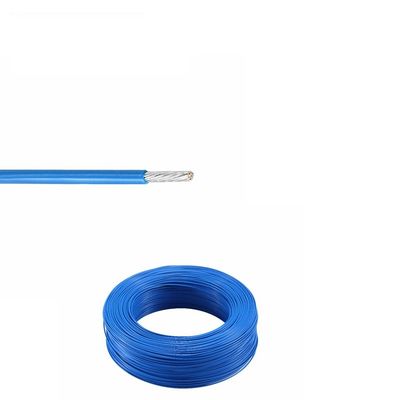

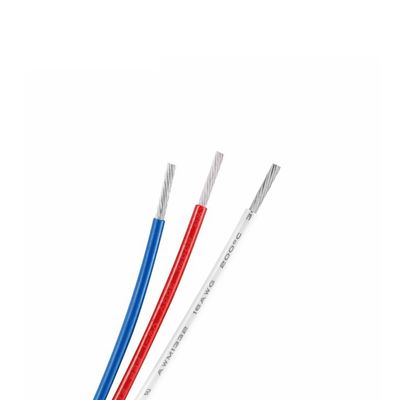

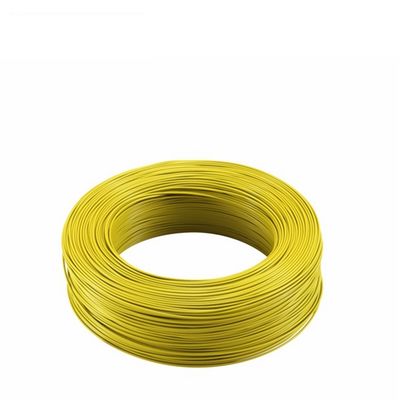

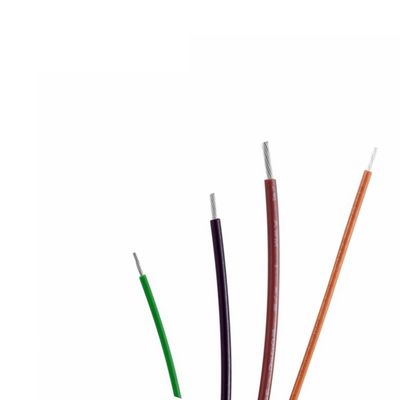

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
  • UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
起源の場所 広東省、中国
ブランド名 MYSUN
モデル番号 UL10468
最小注文数量 3050

試供品およびクーポンのための私に連絡しなさい。

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
導体材質 缶詰の銅 直径 12AWG、14AWG、16AWG、18AWG、20AWG、22AWG、24AWG
断熱材 ゴム 定格電圧 300 V
導体の種類 固体 形 ラウンド
温度 250℃、150または200℃ 電圧 600V
絶縁 ETFEについて 導体 錫メッキ銅/銀メッキ銅
ユニットの長さ 305/1000 最大導体抵抗 5.64Ω/KM(12AWG)、8.96Ω/KM(14AWG)、14.6Ω/KM(16AWG)
公称厚 0.350mm (12AWG)、0.300mm (14AWG)、0.330mm (16AWG) 断熱材の直径 3.05mm (12AWG)、2.55mm (14AWG)、2.16mm (16AWG)
工事 19/0.475 (12AWG)、19/0.37 (14AWG)、19/0.30 (16AWG)
ハイライト

ETFE Insulation Wire

,

UL758 Standard Wire

,

Head Sensor ETFE Wire
メッセージ
製品の説明
UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable
Premium ETFE Wire Supplier for Fortune 500 Companies
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 0 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 1
Technical Specifications
Size (AWG) Conductor Construction Conductor Diameter (mm) Insulation Thickness (mm) Overall Diameter (mm) Max Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.270 0.84 381 610/2000
28 7/0.127 0.36 0.270 0.90 239 610/2000
26 19/0.10 0.48 0.270 1.02 150 610/2000
24 19/0.12 0.60 0.270 1.14 94.2 610/2000
22 19/0.15 0.75 0.300 1.35 59.4 305/1000
20 19/0.19 0.95 0.330 1.61 36.7 305/1000
18 19/0.235 1.17 0.330 1.83 23.2 305/1000
16 19/0.30 1.50 0.330 2.16 14.6 305/1000
14 19/0.37 1.85 0.300 2.55 8.96 305/1000
12 19/0.475 2.35 0.350 3.05 5.64 305/1000
Click to Contact Us for the Best Quote
Company Profile
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 2 UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 3
Our Product Range
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 4
Applications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 5
Our Global Clients
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 6
Industry Exhibitions
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 7
Certifications
UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications 8
Frequently Asked Questions
  • Who are we? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
