UL758 Standard Silicone Wire with 200°C Temperature Resistance and Tinned Copper Conductor for Home Appliances
商品の詳細
| 導体材質 | 錫メッキ銅線 | 直径 | 12 AWG、20 AWG、22 AWG、14 AWG、24 AWG、8 AWG、16 AWG、18 AWG、6 AWG、2 AWG、4 AWG、26 AWG |
|---|---|---|---|
| 断熱材 | シリコーン | 定格電圧 | 300Vから600V |
| 導体の種類 | 座礁 | 形 | ラウンド |
| 温度 | 200 | タイプ | 絶縁 |
| 導体 | 缶詰の銅コア | 定格電圧 | 300V/600V |
| 材料 | 銅 | ジャケット | シリコーン |
| 色 | オプション | 最高の抵抗 | 143 Ω/KM (26 AWG)、89.3 Ω/KM (24 AWG)、56.4 Ω/KM (22 AWG)、35.2 Ω/KM (20 AWG)、22.2 Ω/KM (18 AWG)、14 Ω/K |
| ユニットの長さ | 305/1000 | ||
| ハイライト | UL758 Standard Silicone Wire,200°C Temperature Resistant Silicone Cable,Tinned Copper Conductor High Temperature Wire |
||
製品の説明
UL 16-26 AWG Silicone Cable - High Temperature Resistant Wire for Home Appliances
Seeking Country Agents for Win-Win Partnership

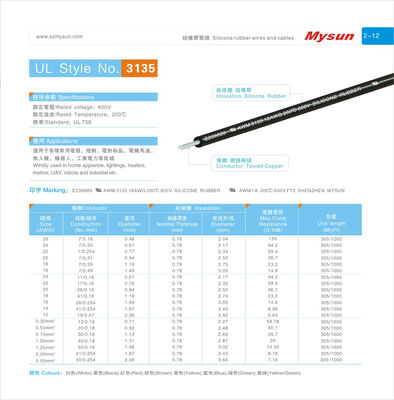

Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.78 | 2.74 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 12 | 19/0.47 | 2.63 | 0.78 | 3.92 | 5.53 | 305/1000 |
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 0.78 | 2.48 | 40.1 | 305/1000 |
| 0.75mm² | 30/0.18 | 1.13 | 0.78 | 2.69 | 26.7 | 305/1000 |
| 1.00mm² | 40/0.18 | 1.31 | 0.78 | 2.87 | 20 | 305/1000 |
| 1.25mm² | 50/0.18 | 1.46 | 0.78 | 3.02 | 14.35 | 305/1000 |
| 2.00mm² | 41/0.254 | 1.87 | 0.78 | 3.43 | 8.78 | 305/1000 |
| 2.50mm² | 50/0.254 | 2.08 | 0.78 | 3.64 | 7.16 | 305/1000 |
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
