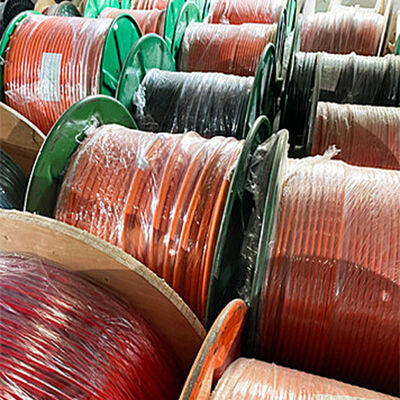

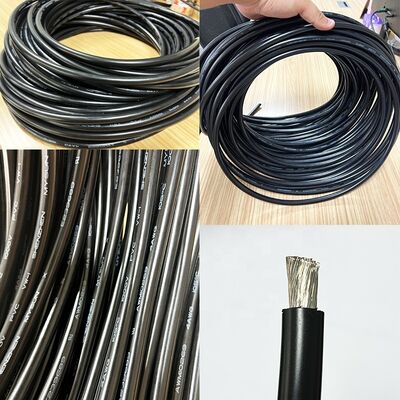

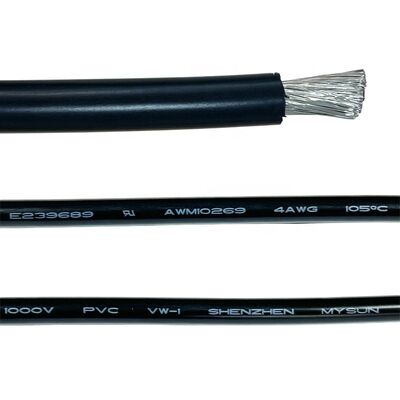

UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
商品の詳細
| 導体材質 | 銅 | 断熱材 | PVC |
|---|---|---|---|
| 定格電圧 | 2000V | サイズ範囲 | 4/0AWG、3/0AWG、2/0AWG、1/0AWG、2AWG、4AWG、6AWG、8AWG、3AWG、5AWG |
| 使用温度 | 105C | 導体の直径 | 0.38mm～3.35mm |
| 断熱材の厚さ | 0.78mm | 厚さをカバーします | 0.13~1.0mm |
| 最大導体抵抗 | 239Ω/KM～2.813Ω/KM | ユニットの長さ | 305M～1220M |
| ジャケット素材 | PVC | 導体構造 | 7/0.127～105/0.254 |
| 公称直径 | 1.94mm～4.91mm | ケーブルの種類 | 高電圧 |
| UL規格 | UL11627 | ||
| ハイライト | 2000V Rated Voltage Battery Cable,105C Working Temperature High Voltage Cable,Copper Conductor New Energy Cable |
||
製品の説明

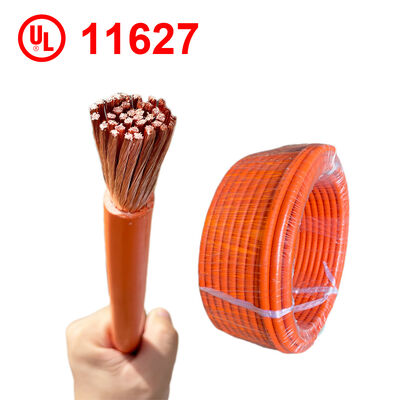

UL11627 New Energy Cable 2000V 105°C High Voltage PVC Wire
Supplies Fortune 500, Top New Energy Cable Supplier In China
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Thickness (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|---|
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 0.13-1.0 | 239 | 1220/4000 |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 0.13-1.0 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.16 | 0.13-1.0 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 0.13-1.0 | 59.4 | 610/2000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 0.13-1.0 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 0.13-1.0 | 23.2 | 610/2000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 0.13-1.0 | 14.6 | 610/2000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 0.13-1.0 | 8.96 | 610/2000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 0.13-1.0 | 5.64 | 610/2000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 0.13-1.0 | 3.55 | 610/2000 |
| 9 | 37/0.475 | 3.35 | 0.78 | 4.91 | 0.13-1.0 | 2.813 | 610/2000 |
Contact Us to Get the Most Cost-effective Quote
Our Products
Application

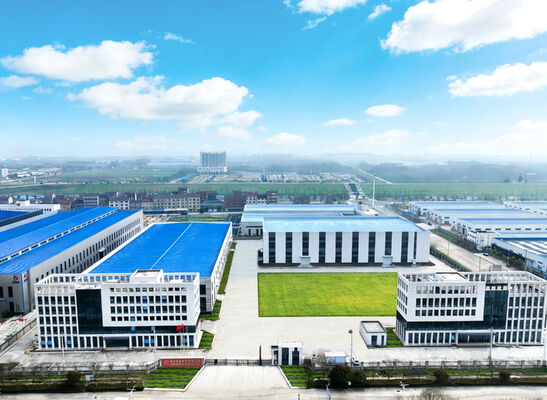

Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
