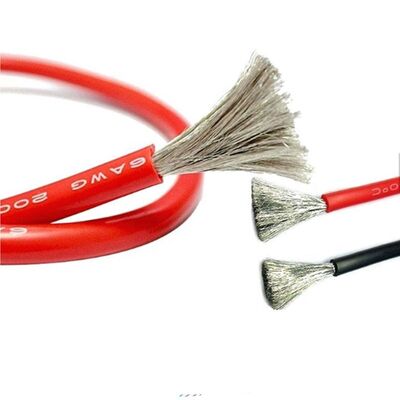

High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
商品の詳細
| 導体材質 | 銅 | 直径 | 2AWG、4AWG、1AWG、6AWG、10AWG、8AWG、12AWG、14AWG、16AWG、18AWG、20AWG、22AWG、24AWG、25mm2、35mm2、50mm2、75mm2、95m |
|---|---|---|---|
| 断熱材 | シリコーン | 定格電圧 | 600V、1500V、1000V |
| 導体の種類 | 座礁 | 温度 | 200℃、150℃ |
| タイプ | 絶縁 | 定格温度 | 200c |
| 導体 | 錫メッキ線 | 絶縁 | シリコーンゴム |
| 最高の抵抗 | 199.0 Ω/KM (0.15mm 2)、40.1 Ω/KM (0.50mm 2)、24.8 Ω/KM (0.75mm 2)、18.7 Ω/KM (1.00mm 2)、12.5 Ω/KM (1.50 | ユニットの長さ | 610/2000 M (0.15mm 2)、305/1000 M (0.50mm 2、0.75mm 2、1.00mm 2、1.50mm 2、2.00mm 2、2.50mm 2、4.0mm 2、6.0m |
| 公称厚 | 0.60 mm (0.15mm2 ～ 2.50mm2)、1.00 mm (4.0mm2 ～ 16.0mm2)、1.90 mm (10.0mm2 ～ 16.0mm2)、2.20 mm (25.0mm2 | 工事 | 7/0.18 (0.15mm2)、20/0.8 (0.50mm2)、30/0.18 (0.75mm2)、40/0.18 (1.00mm2)、30/0.254 (1.50mm2)、40/0.254 (2 |
| ハイライト | 200C Rated Temperature Silicone Wire,600V Rated Voltage Battery Cable,Tinned Copper Conductor High Temperature Cable |
||
製品の説明

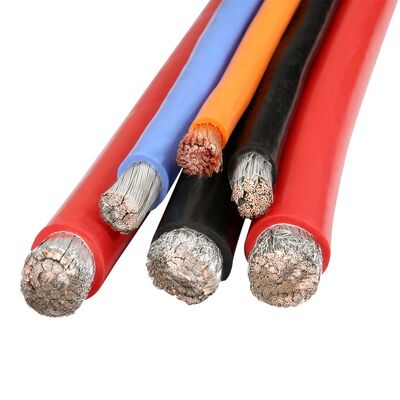

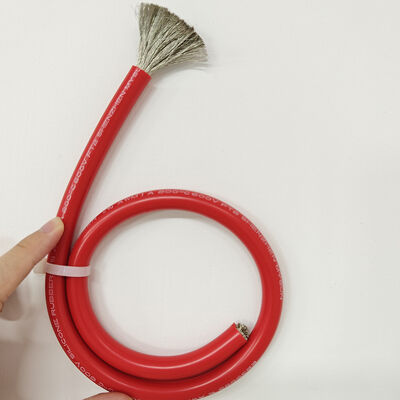

High Temperature Ultra Flexible Soft Silicone Wire
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
Technical Specifications - UL30045
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 0.15 | 7/0.18 | 0.54 | 0.60 | 1.74 | 199.0 | 610/2000 |
| 0.50 | 20/0.8 | 0.92 | 0.60 | 2.12 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.60 | 2.33 | 24.8 | 305/1000 |
| 1.00 | 40/0.18 | 1.31 | 0.60 | 2.51 | 18.7 | 305/1000 |
| 1.50 | 30/0.254 | 1.60 | 0.60 | 2.80 | 12.5 | 305/1000 |
| 2.00 | 40/0.254 | 1.87 | 0.60 | 3.07 | 8.96 | 305/1000 |
| 2.50 | 50/0.254 | 2.08 | 1.00 | 4.08 | 7.47 | 305/1000 |
| 4.0 | 128/0.20 | 2.9 | 1.00 | 4.90 | 4.70 | |
| 6.0 | 192/0.20 | 3.3 | 1.00 | 5.30 | 3.15 | |
| 10.0 | 379/0.20 | 4.6 | 1.90 | 8.40 | 1.80 | |
| 16.0 | 84/0.4 | 4.5 | 1.90 | 8.30 | 14 | |
| 16.0 | 510/0.20 | 6.0 | 1.90 | 9.80 | 1.15 | |
| 12 | 128/0.4 | 5.5 | 1.90 | 9.30 | 5.53 | |
| 25.0 | 797/0.20 | 7.5 | 2.20 | 11.90 | 0.80 | |
| 0.50mm² | 200/0.4 | 7.0 | 2.20 | 11.40 | 40.1 | |
| 35.0 | 1115/0.20 | 8.8 | 2.20 | 13.20 | 0.60 | |
| 1.00mm² | 279/0.4 | 8.0 | 2.20 | 12.40 | 20 | |
| 50.0 | 1593/0.20 | 10.3 | 2.40 | 15.10 | 0.40 | |
| 2.00mm² | 399/0.4 | 10.3 | 2.40 | 15.10 | 8.78 | |
| 70.0 | 2230/0.20 | 12.0 | 2.40 | 16.80 | 0.30 | |
| 357/0.5 | 12.0 | 2.40 | 16.80 | |||
| 95.0 | 3026/0.20 | 14.0 | 2.40 | 18.80 | 0.20 | |
| 485/0.5 | 14.0 | 2.40 | 18.80 | |||
| 120.0 | 2368/0.254 | 16.0 | 2.40 | 20.80 | 0.17 | |
| 612/0.5 | 16.0 | 2.40 | 20.80 | |||
| 150.0 | 765/0.5 | 17.5 | 2.40 | 22.30 | 0.14 |
Our Products
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
