UL3820 XLPE Battery Cable 125C 1000V High Voltage Electric Vehicle Cable for Auto and Industrial Use
商品の詳細
| 導体材質 | 錫メッキ銅 | 直径 | 4/0AWG、3/0AWG、2/0AWG、1/0AWG、2AWG、4AWG、5AWG、6AWG、7AWG、8AWG、9AWG、10AWG、12AWG、14AWG、16AWG、18AWG、20AWG、2 |
|---|---|---|---|
| 断熱材 | XLPE | 定格電圧 | 1000V |
| 導体の種類 | 座礁 | 形 | ラウンド |
| 温度定格 | 125C | 最高の抵抗 | 0.1722Ω/KM(4/0AWG) |
| 断熱材の厚さ | 0.78mm (AWG 30-12用) | 公称直径 | 1.86mm(AWG30) |
| ユニットの長さ | 610/2000M/FT | 導体構造 | 7/010 (AWG30) |
| 最大直径 | 19.60mm (4/0AWG) | ストランドカウント | 547 (4/0AWG) |
| ストランド径 | 0.40mm (4/0AWG) | ||
| ハイライト | 125C Battery Cable,1000V Electric Vehicle Cable,XLPE Insulation High Voltage Cable |
||
製品の説明

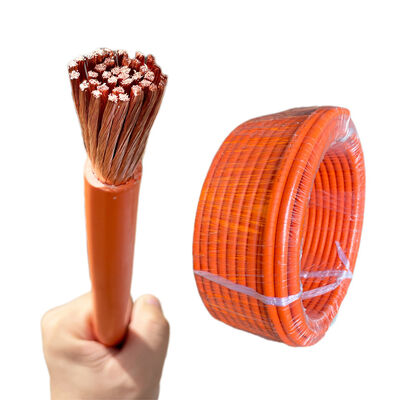

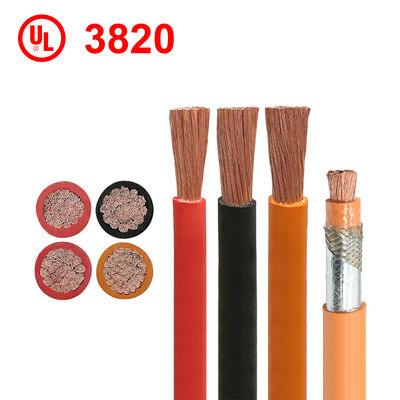

UL3820 XLPE Battery Cable 125°C 1000V High Voltage Electric Vehicle Cable
Available in sizes: 2AWG, 4AWG, 5AWG, 6AWG and other standard gauges
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/FT) |
|---|---|---|---|---|---|---|
| 30 | 7/010 | 0.30 | 0.78 | 1.86 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 239 | |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 150 | |
| 24 | 7/0.2 | 0.60 | 0.78 | 2.16 | 94.2 | |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 59.4 | |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 36.7 | |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 23.2 | |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 14.6 | |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.96 | |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.64 | 100/328 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.55 | |
| 9 | 131/0.254 | 3.36 | 0.78 | 4.92 | 2.813 | |
| 8 | 166/0.254 | 3.75 | 1.15 | 6.05 | 2.23 | |
| 7 | 209/0.254 | 4.21 | 1.15 | 6.51 | 1.768 | |
| 6 | 263/0.254 | 4.79 | 1.53 | 7.85 | 1.403 | |
| 4 | 169/0.40 | 6.02 | 1.53 | 9.08 | 0.882 | |
| 2 | 268/0.40 | 7.60 | 1.53 | 10.66 | 0.5548 | |
| 1/0 | 426/0.40 | 10.8 | 2.1 | 15.00 | 0.3487 | |
| 2/0 | 537/0.40 | 12.2 | 2.1 | 16.40 | 0.2766 | |
| 3/0 | 677/0.40 | 13.7 | 2.1 | 17.90 | 0.2194 | |
| 4/0 | 547/0.40 | 15.4 | 2.1 | 19.60 | 0.1722 |
