UL3932 XLPE Cable 2000V Rated Voltage 125C Temperature Rating Tinned Copper Conductor High Voltage Wire for EV & Industrial Applications
商品の詳細
| 導体材質 | 錫メッキ銅 | 直径 | 4/0AWG、3/0AWG、2/0AWG、1/0AWG、2AWG、4AWG、5AWG、6AWG、7AWG、8AWG、9AWG、10AWG、12AWG、14AWG、16AWG、18AWG、20AWG、2 |
|---|---|---|---|
| 断熱材 | XLPE | 定格電圧 | 2000V |
| 導体の種類 | 座礁 | 形 | ラウンド |
| 温度定格 | 125C | 最大導体抵抗 | 0.1722Ω/KM(4/0AWG) |
| 公称厚 | 0.59mm | ユニットの長さ | 610/2000 (月/FT) |
| 導体構造 | 7/4.42 (4/0AWG) | 断熱材の直径 | 14.26mm (4/0AWG) |
| 導体の直径 | 13.26mm (4/0AWG) | 色 | 顧客の要件 |
| 最小注文数量 | 1000M | ||
| ハイライト | 2000V Rated Voltage XLPE Cable,125C Temperature Rating High Voltage Wire,Tinned Copper Conductor Battery Cable |
||
製品の説明

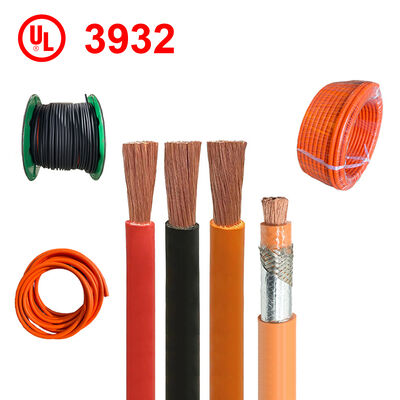

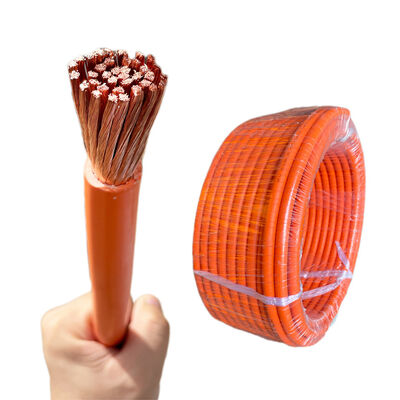

UL3932 XLPE High Voltage Cable
2000V 125°C Tinned Copper Conductor - Available in 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG sizes for EV & High Voltage Systems
Trusted Supplier to Fortune 500 Companies - Leading New Energy Cable Manufacturer in China
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/FT) |
|---|---|---|---|---|---|---|
| 30 | 7/0.10 | 0.30 | 0.59 | 1.30 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.59 | 1.38 | 239 | |
| 26 | 7/0.16 | 0.50 | 0.59 | 1.50 | 150 | |
| 24 | 7/0.2 | 0.60 | 0.59 | 1.60 | 94.2 | |
| 22 | 17/0.16 | 0.76 | 0.59 | 1.76 | 59.4 | |
| 20 | 21/0.18 | 0.94 | 0.59 | 1.94 | 36.7 | |
| 18 | 16/0.254 | 1.19 | 0.59 | 2.19 | 23.2 | |
| 16 | 26/0.254 | 1.50 | 0.59 | 2.50 | 14.6 | |
| 14 | 41/0.254 | 1.89 | 0.59 | 2.89 | 8.96 | |
| 12 | 65/0.254 | 2.37 | 0.59 | 3.37 | 5.64 | 100/328 |
| 10 | 105/0.254 | 3.02 | 0.59 | 4.02 | 3.55 | |
| 9 | 37/0.475 | 3.35 | 0.59 | 4.35 | 2.813 | |
| 8 | 133/0.28 | 3.75 | 0.59 | 4.75 | 2.23 | |
| 7 | 65/0.45 | 4.21 | 0.59 | 5.21 | 1.768 | |
| 6 | 84/0.45 | 4.79 | 0.59 | 5.79 | 1.403 | |
| 4 | 133/0.45 | 6.02 | 0.59 | 7.02 | 0.882 | |
| 2 | 212/0.45 | 7.60 | 0.59 | 8.60 | 0.5548 | |
| 1/0 | 7/3.2 | 9.6 | 0.59 | 10.60 | 0.3487 | |
| 2/0 | 7/3.57 | 10.71 | 0.59 | 11.71 | 0.2766 | |
| 3/0 | 7/3.94 | 11.82 | 0.59 | 12.82 | 0.2194 | |
| 4/0 | 7/4.42 | 13.26 | 0.59 | 14.26 | 0.1722 |
